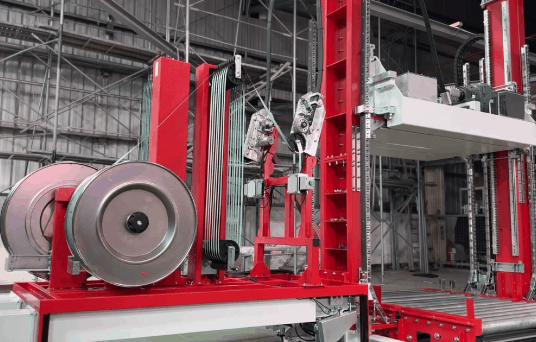

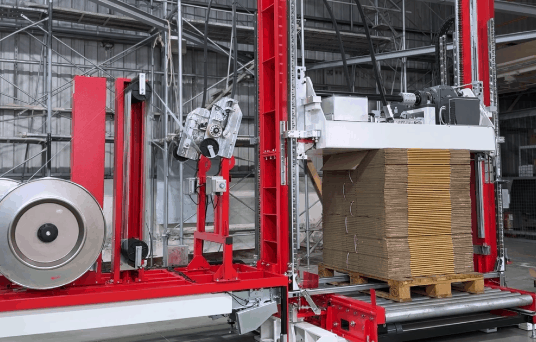

Fully-Auto Pallet Strapping Machine

Introducing the best option for strapping and palletizing of loads, the new Atlas TP-733VTSP is a high-performance top-seal pallet strapping system with 2.5 tons of compression, ensuring palletized loads are firmly secured for safe transportation. It’s ideal for the corrugated, paper, and glass bottle industries, and features two different models:

  • TP-733VTSP-S: Single Head, Single Track
  • TP-733VTSP-T: Two Heads, Three Tracks

Both models are fully automatic for vertical applications and feature a superior 2.5 tons compression seal, the TP-733VTSP-S model has a single head and single track, while the TP-733VTSP-T model has two heads and three tracks, both with friction weld sealing technology and a tension up to 320 KG, 3 Phase, and is CE norm.

Main Features

  • Top-mounted state-of-the-art ARES TP-733-SH strapping head
  • All-electric driven design for optimized energy efficiency and precise control
  • Friction weld sealing technology, good for both PP and PET strapping

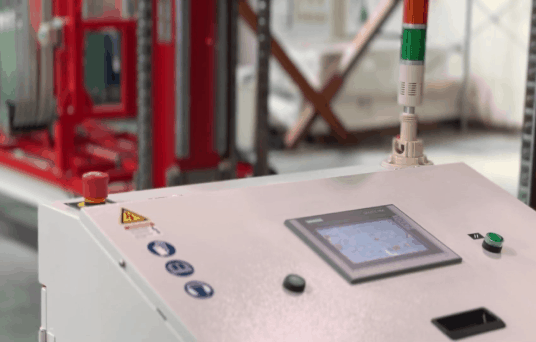

  • Features Siemens PLC and HMI, a reliable and high-performance controller for automation
  • Strap can be fed at any height, enhancing strapping capacity
  • Movable strap lance
  • Strap end ejector
  • Adjustable speed for strapping head movement
  • Excellent package top detection
  • 30 Preprogram settings for multiple strapping tasks
  • Adjustable compression forces up to 2.5 tons
  • Dual channel E-stop

Options

  • Light tower with low strap sensor
  • Adding underfeed channel
  • Underfeed channel only
  • End of strap signals
  • Auto feed strap to strapping head
  • Automatic self-adjusting strapping head height for next package
