USED EQUIPMENT

Equipment Category:

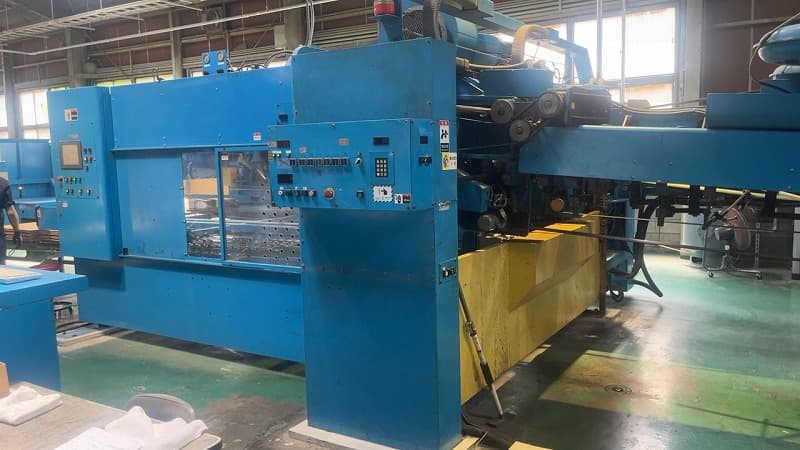

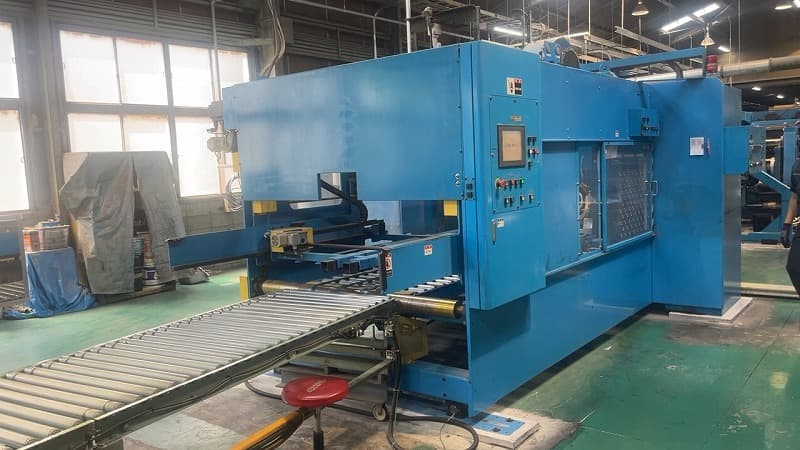

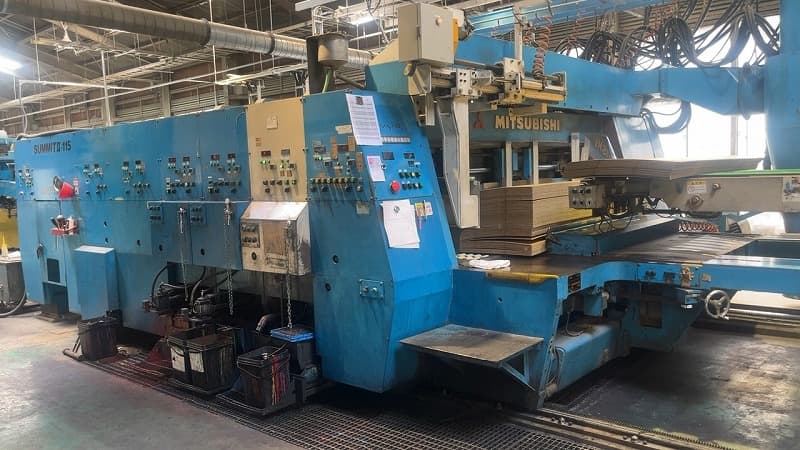

50″ x 113″ Mitsubishi 3C Flexo Folder Gluer

FFG-450-D

Reference I.D.

Have questions about this equipment? Click below:

Inquiry Form

Equipment Details:

BRAND:

Mitsubishi

MODEL:

Model Summit II 115

SIZE OR FORMAT:

50" x 113"

YEAR:

1992

DESCRIPTION:

Max. sheet size : 1,220x 2,875mm, Min. sheet size : 330 x 920 or 420 x 800 ( due to side jogger size ), Max. printing area : 1,1180 x 2, 670mm, Max. speed : 250 sheets/min., With rotary die cutter unit, With Ozone bland pre-feeder, With one stage counter ejector ( in 2008 ), With 22kw screw compressor with tank, With attached spare parts ( it was made by owner , we do not confirm one by one ), without tom tying machine., The present using main motor driver will renew before machine dismantle. 1st color is two roll system ( anilox and rubber roll ), 2nd and 3rd color are chamber system ( anilox rolls are ceramics # 200 ) We will take out feed unit table to load normal HQ container. This machine will be dismantled around February 2026 .

LOCATION:

Japan

VIDEO:

DOCUMENTATION:

AVAILABLE

EQUIPMENT STATUS:

AVAILABLE
